KOEL iGreen Power Backup Solutions -15 KVA-160 KVA, Gensets Dealer, Supplier, Pune, Maharashtra, India

Gensets - 15 KVA - 160 KVA -

KOEL iGreen Power Backup Solutions :

KOEL iGreen presents India’s only digital power Backup Solutions, designed for the users of tomorrow. KOEL iGreen promises world class performance with word class features such as robust design, digital connectivity, ultimate convenience of use, smart user interface, superior looks and one-stop solution for its esteemed customers.

Ultimate Convenience with AMF
Genset Control at Your Finger Tips
QR Code Enabled Genset
Status Indicator
Aesthetically Enhanced Genset
Single Point Of Ownership
Refuel and Relax, We will take care of your Gense

Request A Quote

Download Catalog

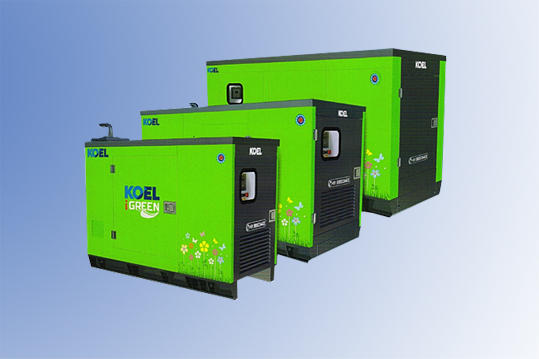

KOEL iGreen Power Backup Solutions : 15 - 160 kVA
Prime Rating at rated rpm (as per ISO 8528)¹		KVA	15	20	25	30
Prime Rating at rated rpm (as per ISO 8528)¹		kW	12	16	20	24
Genset Model			KG1-15ASE1	KGI1-20WSE1	KG1-25WSE	KG1-30WSE
Frequency		Hz	50	50	50	50
Power Factor		lagging	0.8	0.8	0.8	0.8
Voltage		V	230 (1∅) & 415 (3∅)
Governinf class (As per ISO 8528 Part-V)			G2	G2	G2	G2
Nosie Level		dBA	<75	<75	<75	<75
Fuel Consumption #	At 100% Load	Ltrs/Hr	4	5.1	5.8	7.6
	At 75% Load		3	3.8	4.4	5.8
	At 50% Load		2.2	2.7	3.2	4.4
Fuel tank capacity		Ltrs	45	65	65	65
Weight of genset wlth canopy (approx..)^✪	Dry	Kg	810	880	1040	1040
Weight of genset wlth canopy (approx..)^✪	Wet	Kg	880	930	1090	1090
Overall dimensions of genset ^	Length	mm	1740	2205	2500	2500
	Width	mm	1050	950	950	950
	Height	mm	1474	1294	1294	1294
Electrical Battery starling voltage		Volts-DC	12	12	12	12
ENGINE
Engine Model			HA294 SI	2R1040 G1	3R1040T G1	3R1040T G1
Rated output (Prime Continuous rating as pei 150 8528-1)		kW	15.1	18.8	24	30.9
Rated output (Prime Continuous rating as pei 150 8528-1)		HP	20.5	25.5	42	42
No. of cylinder		Number	2	2	3	3
Cubic capacity²		Mtrs	1.88	2.08	3.12	3.12
Bore x Stroke		mm	100 x 120	105 x 120	105 x 120	105 x 120
Rated Speed		RPM	1500	1500	1500	1500
Aspiration		NA/TC/TA	NA	NA	TC	TC
Lube Oil change period		hrs	500	500	500	500
Lube oil Sump Capacity		Ltrs	5	5.5	8	8
Coolant Capacity		Ltrs	NA	9	14.5	14.5
ALTERNATOR
Insulation Class			Class H	Class H	Class H	Class H
Alternator Eliciency (at 100% load) 0.8 pf ^**		%	85.2	88.6	89	87.9
Max Voltage Dip at Full Load 0.8 pf Lag		sec	<20%	<16%	<16%	<16%
Max Time to build up rated voltage at Rated RPM		< 5 sec provided engine reach the rated speed

Notes ^ Tolerances Apply, #With 0.845 Specific Gravity of diesel ( 5% Tolerance ) ^✪ These weight are for handling & transportation only ^* Silencer inside canopy and bolt-less canopy is available only up-to 62.5kVA		** Efficiency of Alternator as per ständards IS 4722 and IEC 34-1 For Site Conditions other than standard operating conditions consult KOEL for available prime power.

KG1- 40WSE	KG1 • 45W5E	KG1- 62.5WSE	KG1- 82.5W5	KG1•100WS	KG1-125WS	KG1-160WS
40	45	62.5	82.5	100	125	160
32	36	50	66	80	100	128
50	50	50	50	50	50	50
0.8	0.8	0.8	0.8	0.8	0.8	0.8
415 (3∅)
G2	G2	G2	G2	G3	G3	G3
<75	<75	<75	<75	<75	<75	<75
9.2	10.3	14.1	18.8	21.9	27.4	36.6
7.4	8.7	11.3	13.8	16.9	20.2	27.7
5.5	5.9	7.5	10.3	12.2	15.3	19.1
100	100	150	150	230	230	300
1180	1180	1470	1710	2040	2090	2730
1215	1215	1600	1840	2240	2290	3110
2750	2750	2900	3200	3200	3200	4000
1050	1050	1100	1100	1300	1300	1500
1493	1493	1581	1595	1795	1795	1915
12	12	12	12	12	12	12

3R1040TA G1	3R1040TA G1	4R810TA G1	4R1040TA G1	4K1080TA G2	4K1080TA G2	6K1080TA G2
41.2	41.2	61	74.8	114.7	114.7	147
36	56	83	102	156	156	200
3	3	4	4	4	4	6
3.12	3.12	3.24	4.16	4.32	4.32	6.48
105x120	105x120	96x112	105x120	105x125	105x125	105x125
1500	1500	1500	1500	1500	1500	1500
TA	TA	TA	TA	TA	TA	TA
500	500	500	500	500	500	500
8	8	10	10	14	14	18
11.5	11.5	17.5	24	21	21	28

Class H	Class H	Class H	Class H	Class H	Class H	Class H
84.2	88.2	91	89.9	92	92.4	92.8
<16%	<16%	≥20%	≥20%	≥20%	≥20%	≥20%
Voltage recovery time 6 sec				< 1 sec provided engine reach the rated speed

KOEL iGreen Power Backup Solutions - 15 KVA - 160 KVA
